EDS PN: 1022002001R

Quadrax Eye Diagram Test Adapter

Adapter Characteristics
  • TX (pin 1 and pin 3) and RX (pin 2 and pin 4)Termination: 100 Ohms
  • TX and RX Differential trace impedance: 100 Ohms +-10%
  • Quadrax contact: Socket
    Note: Custom modifications are available by special ordering

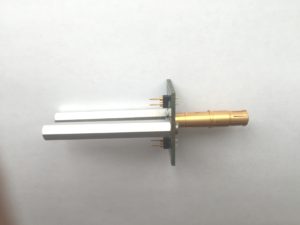

IMG_2055_M
Application
  • Avionics (A664 compliance) 100BASE TX Eye diagram testing
  • Avionics (A664 compliance) 1000BASE T Template, Peak Volt, Drop and Distortion testing
  • Other Hi Speed 100 ohms differential signal interfaces where Quadrax connector and terminations need to be used during testing

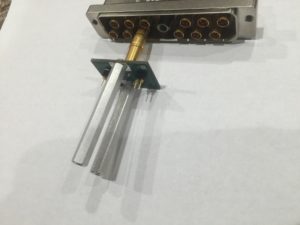

IMG_2057

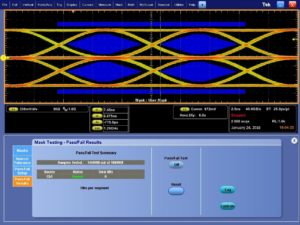

Eye diagram QA
User Guide with card specific installation and test approaches description is available by special customer request

Eye Diagram Test Adapter
1022002001R Avionics Verification Test Card
