EDS PN: 1012005001R

Avionics RS422 Qualification Test Card

Card Characteristics
  • Dimension: 6.745 in x 5.0 in
  • Number of Channels: 4 (full duplex)
  • Power:12VDC, 0.3A
The main EMI characteristics
  • Radio Frequency Conducted Susceptibility (DO160G Category M, O, R, S, T, W, Y )
    Note: Cat Y available for special order
  • Emission Radio Frequency Energy (Card does not have any clock signals and power supplies)
  • Lightning Pin Injection (DO160G Level 3)

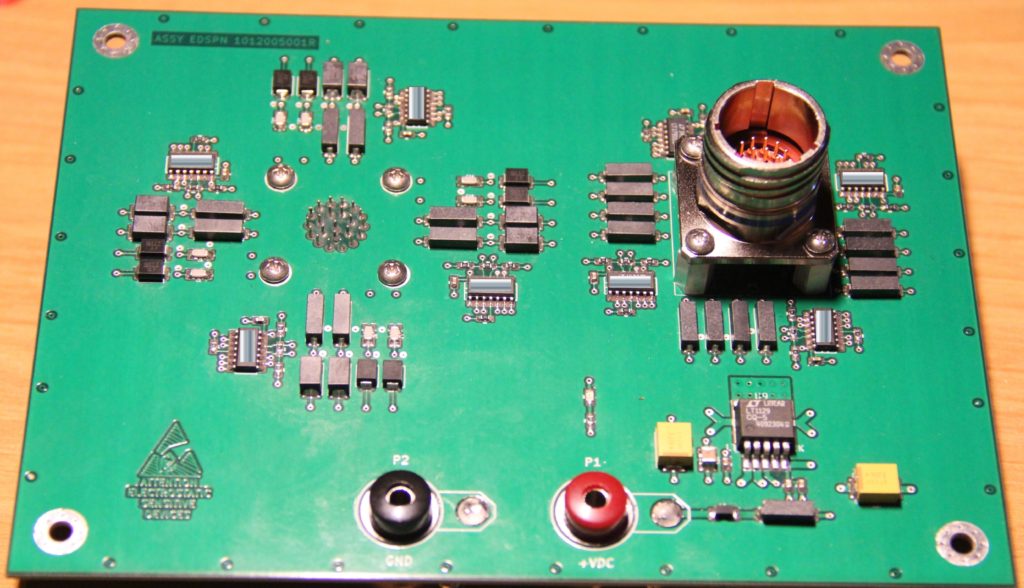

IMG_1787_M
Test Approaches
  • Isolation Loopback Test (Ethernet transformers are used for isolation)
  • External Isolation Simulation Test
User Guide with card specific installation and test approaches description is available by special customer request
