Avionics qualification testing is a critical phase in the development and certification of airborne electronic systems. The qualification process verifies that avionics equipment can operate reliably under demanding environmental, electrical, and electromagnetic conditions in accordance with industry standards such as RTCA DO-160, MIL-STD-461, and related aerospace requirements.
One of the most common challenges during qualification testing is not the Unit Under Test (UUT) itself, but the design and implementation of the supporting qualification test setup. Improperly designed support equipment, interface simulation hardware, or cabling configurations can introduce inaccurate test results, excessive troubleshooting time, unnecessary redesign cycles, and qualification delays.
Dedicated avionics qualification support equipment plays a critical role in ensuring accurate, repeatable, and efficient qualification testing. Properly designed qualification hardware must:
- Support all applicable UUT EMI/EMC requirements
- Simulate avionics interface electrical loading conditions
- Provide EMI-protected interface connections
- Support active loopback and isolation architectures
- Protect external support equipment from severe EMI exposure
- Maintain reliable operational monitoring during testing

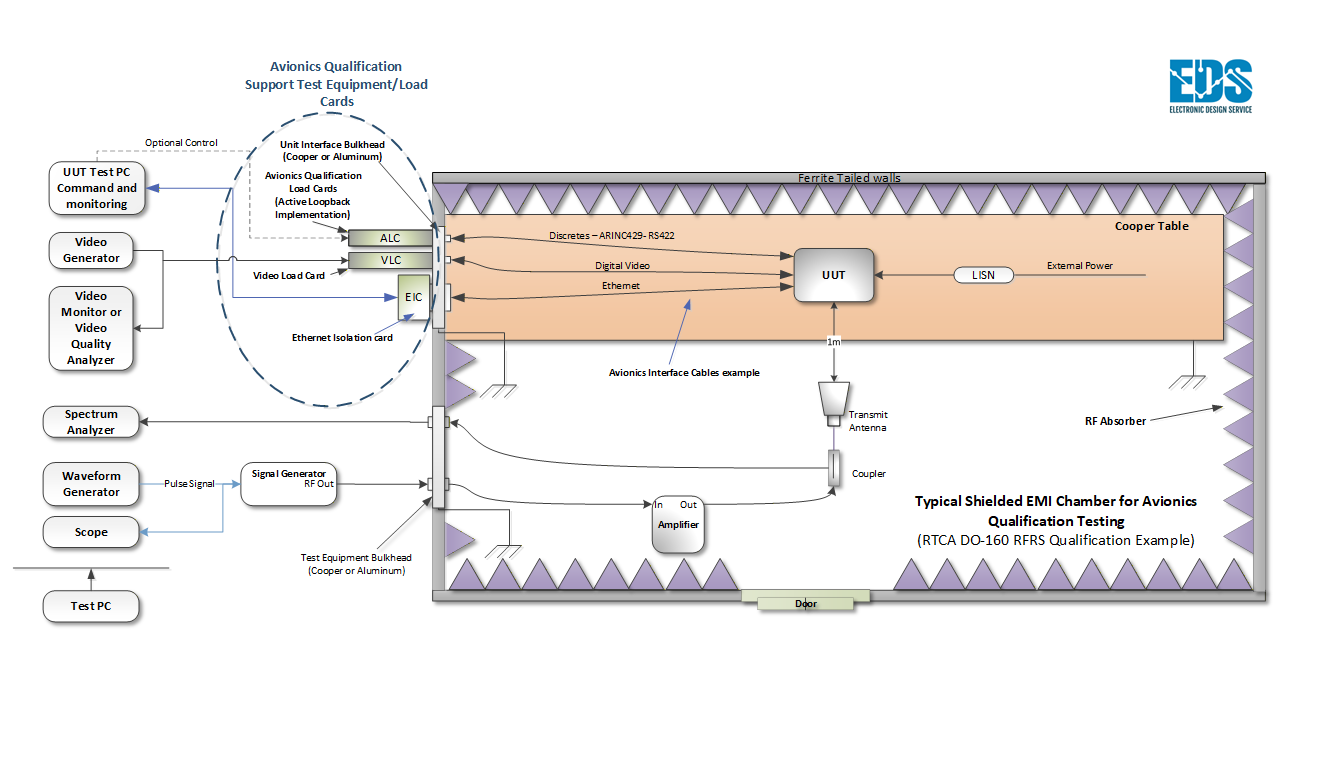

The figure below shows a typical avionics EMI qualification setup using an RTCA DO-160 Radiated Radio Frequency Susceptibility (RFRS) test configuration example.
The qualification setup can generally be divided into two major categories:
🥈 1. EMI Test Environment Generation Equipment
This equipment creates and controls the required electromagnetic test environment inside the shielded EMI chamber. Typical equipment includes:
- RF signal generators
- Waveform generators
- RF power amplifiers
- Directional couplers
- Transmit antennas
- Oscilloscopes
- Spectrum analyzers
- Automated test and monitoring computers
These systems generate the controlled EMI environment required to verify avionics susceptibility performance during qualification testing.
🥈 2.UUT Operational Support and Interface Simulation Equipment
This equipment supports operational functionality of the avionics Unit Under Test during qualification testing. Typical support hardware includes:

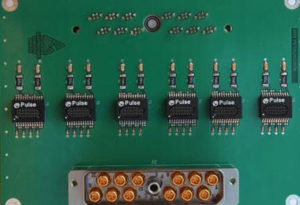

- Avionics qualification load cards with active loopback and simulation interface hardware
- Isolation interface cards
- Functional monitoring systems
- UUT control computers
- EMI-protected avionics interface cabling
This portion of the qualification setup is especially critical because it must maintain reliable avionics operation while simultaneously minimizing unintended EMI coupling paths and protecting sensitive external support equipment.
The complete combination of EMI generation equipment, avionics qualification support hardware, interface simulation equipment, monitoring systems, and control software forms the UUT Qualification Test Setup.
