EDS PN: 1012006001R

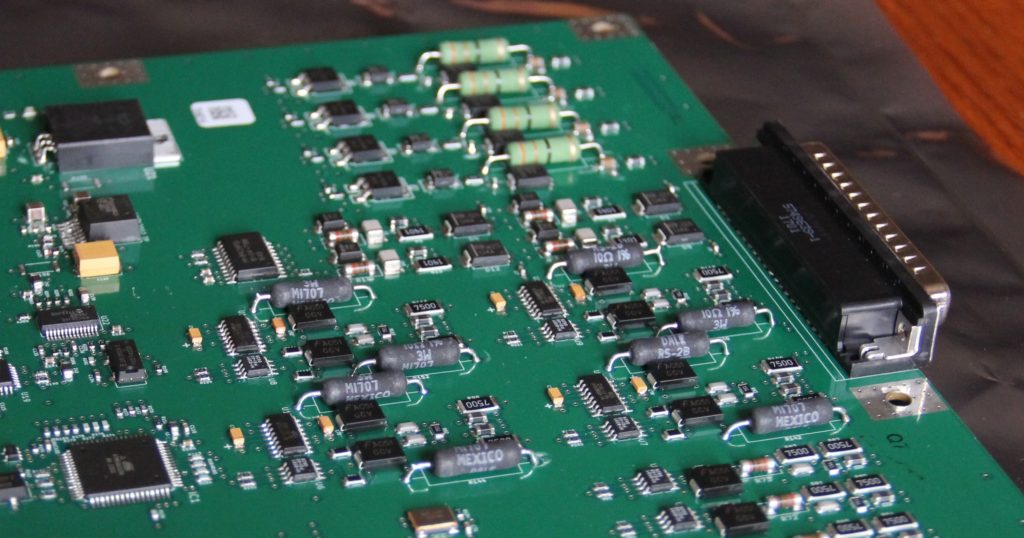

Avionics Voltage/Open Discrete Qualification Test Card

Card Characteristics
  • Dimension: 8.350 in x 7.250 in
  • Number of Channels:Discrete Input x 12; Discrete Output x 12
  • Discrete Inputs/Outputs characteristics meet the standard avionics requirements
  • Possibility of different load simulation
  • Possibility of two different types of installation - Flat and Edge
  • Power: 28VDC; 0.4A
The main EMI characteristics
  • Induced Signal Susceptibility (DO160F Categories A and BG
  • Radio Frequency Conducted Susceptibility (DO160G Categories M, O, R, S, T, W)
    Note: Cat Y is available for special order
  • Emission Radio Frequency Energy (Card does not have any clock signals. All interfaces are low frequency. All secondary power supplies have high level of filtering and isolation from signal interfaces.)
  • Lightning Pin Injection (DO160G Level 4)
  • Special PCB layout and schematic approaches provide high noise isolation from environmental and I/O EMI.
  • Possibility of input to multiple output configurations.
Test Approaches
  • Active Isolation Loopback Test (fully isolated inputs from outputs)
  • External Isolation Simulation Test (provides test equipment protection)
Electronic Design Service
Electronic Design Service
User Guide with card specific installation and test approaches description is available by special customer request
