EDS PN: 1022004001R

RJ45 Eye Diagram Test Adapter

Adapter Characteristics
  • All Differential Pair Termination: 100 Ohms
  • TX and RX Differential trace impedance: 100 Ohms +-10%
  • RJ45 Contact: Plag

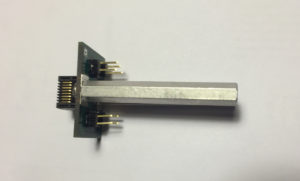

aa587a4c02ffc72650faa0b2e3ad25e8
Application
  • 100BASE TX Eye diagram testing
  • 1000BASE T Template, Peak Volt, Drop and Distortion testing
Eye diagram QA
User Guide with card specific installation and test approaches description is available by special customer request

RJ45 Eye Diagram Test Adapter
1022004001R Avionics Verification Test Card
