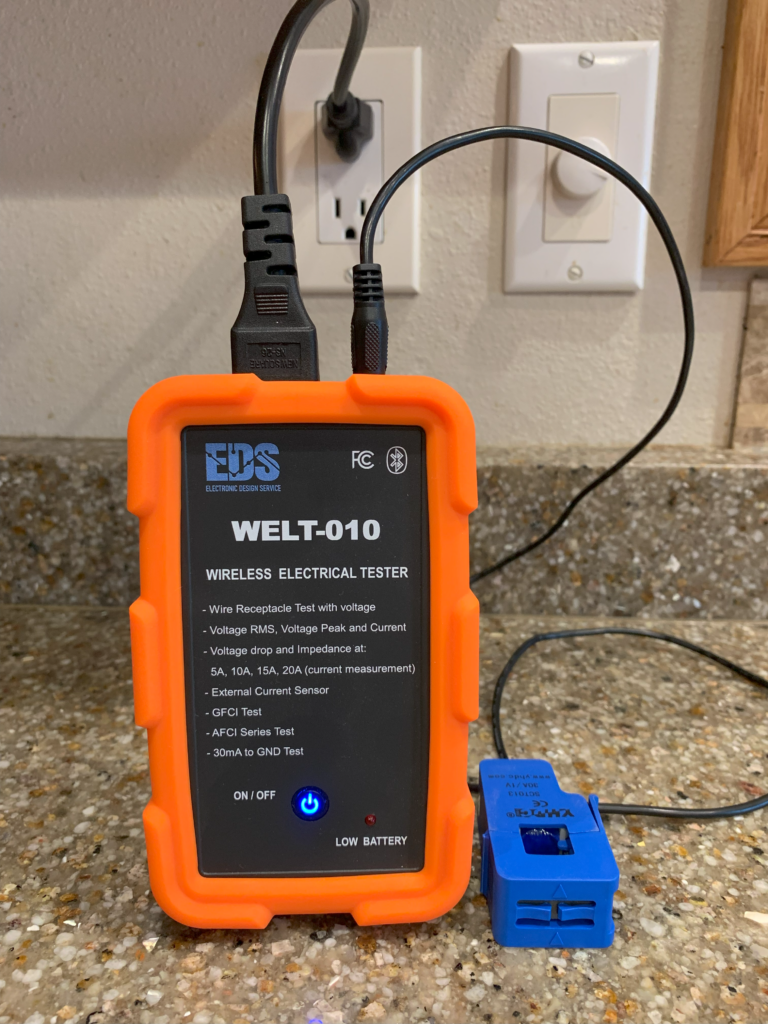

WELT-010 Electrical Diagnostic Tool
The WELT-010 electrical tester analyzer helps professionals diagnose wiring faults and evaluate electrical installation performance.
The WELT-010 Electrical Tester & Analyzer developed by Electronic Design Service (EDS) is a professional diagnostic instrument designed to evaluate electrical wiring conditions and verify installation safety.
The device combines traditional electrical testing methods with modern wireless connectivity, allowing electricians, inspectors, and technicians to analyze wiring performance and detect potential problems in electrical installations.
Using Bluetooth connectivity, the WELT-010 allows real-time monitoring of electrical parameters through a smartphone or tablet, improving testing flexibility and safety.
Example Engineering Use Case
Electrical wiring problems are often difficult to diagnose because voltage measurements taken without load conditions may not reveal poor electrical connections or wiring defects.
The WELT-010 Electrical Tester & Analyzer allows engineers and technicians to evaluate wiring performance under controlled load conditions while monitoring voltage drop and circuit behavior.
By combining electrical load simulation with real-time monitoring through a smartphone interface, the device helps identify wiring issues that may not be visible during standard electrical inspections.
This approach allows professionals to detect:
High resistance connections
Undersized wiring in branch circuits
Improper electrical installations
Voltage drop problems affecting equipment performance
Using the WELT-010 helps technicians diagnose electrical systems more efficiently and verify the quality of electrical installations.
The table below summarizes the key specifications and capabilities of the WELT-010 Electrical Tester & Analyzer.
| Key Specification | Details |
|---|---|
| Connectivity | Bluetooth smartphone interface |
| Diagnostics | Voltage & Current, Voltage drop, wiring faults |
| Monitoring | Remote real-time data |
| Application | Electrical inspection and testing |
Typical Applications
The WELT-010 Electrical Tester & Analyzer is used by electrical professionals in a wide range of applications.
Typical uses include:
Electrical wiring inspection and diagnostics
Voltage drop analysis in branch circuits
Verification of electrical installation quality
Troubleshooting wiring faults
Electrical system safety evaluation
Advanced Electrical Wiring Diagnostics
The WELT-010 helps technicians identify electrical issues that may affect system performance or safety.
Key diagnostic capabilities include:
- AC voltage and current measurement
Voltage drop measurement under load conditions
Detection of wiring faults and poor electrical connections
Evaluation of circuit performance during operation
Verification of electrical installation safety
Remote monitoring of test data using a smartphone application
These capabilities allow professionals to diagnose wiring problems quickly and accurately.
Remote Monitoring and Safer Testing
The WELT-010 supports remote monitoring through Bluetooth connectivity. Test data can be observed on a smartphone or tablet while measurements are performed at the electrical installation.
This feature allows technicians to monitor electrical parameters while operating switches or connecting loads at different locations, improving safety and testing convenience.
Reliable Engineering Design
EDS products are developed using disciplined engineering practices similar to those applied in avionics hardware development. This ensures reliable operation, accurate measurements, and long-term durability in field environments.
Related Engineering Tools
Electronic Design Service also develops other tools supporting electrical diagnostics and engineering workflows.
Learn more about:
WELT-010 – Technical Specifications
General Features
- Product Type: Bluetooth Low Energy (BLE) Electrical Line Tester
- Model: WELT-010
- Connectivity: BLE 4.2, 2.4 GHz RF Transceiver
- App Compatibility: iOS and Android
- Antenna: Integrated PCB Antenna
- Power Supply: 120V AC (Standard Wall Outlet)
- Enclosure: Flame-retardant ABS plastic
- Dimensions: 4.2” x 2.8” x 1.5” (approx.)
- Weight: 6 oz (approx.)
Measurement Capabilities
- Voltage Measurements:
- Line-to-Neutral
- Line-to-Ground
- Neutral-to-Ground
- Peak Voltage (Hot-Neutral)
- Current Measurement:
- Internal RMS Current
- Optional External Clamp Sensor for Extended Range
- Voltage Drop Simulation: Under 5A, 10A, 15A, and 20A loads
- Simulated loads without tripping breakers or blowing fuses
- Impedance Analysis:
- Detects splices, connection issues, wire quality
- Identifies high resistance joints and wiring faults
- Wiring Diagnostics:
- Socket wiring check
- Line, neutral, ground reversal or disconnection
Safety & Code Compliance Tests
- GFCI Test:
- Simulates ground faults to test outlet protection
- AFCI Test:
- Series Arc Simulation
- Parallel Arc Simulation
- Ground Test:
- 30mA leakage test to ground
Environmental Specifications
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Humidity: 0–90% RH, non-condensing
- Indoor Use Only
Certifications & Compliance
- FCC Certified (FCC CFR47, Part 15)
- RoHS Compliant
- Designed and Assembled in the USA
Note: Requires smartphone or tablet for full functionality (free app download required).
Electrical Testers Comparison Table
| Feature | WELT-010 | Basic Plug-In Tester | Standard Multimeter |
| Voltage Measurement | L-N, L-G, N-G, Peak Detection | Limited (via light indicators) | Manual AC/DC voltage testing |
| Current Measurement | Internal RMS + Optional Clamp | Not Available | Clamp model required |
| Bluetooth Connectivity and Remote Operation | Yes (BLE 4.2) | No | No |
| Smartphone App Integration | Yes (iOS & Android) | No | No |
| Voltage Drop Testing | Yes (5A, 10A, 15A, 20A simulated) | No | No |
| Load Simulation Without Tripping | Yes | No | No |
| Wiring Fault Detection | Yes (Socket Wiring Check) | Limited | Limited |
| AFCI Test (Series & Parallel) | Yes | No | No |
| GFCI Test | Yes | Some models only | No |
| Ground Leakage Test (30mA) | Yes | No | No |
| Impedance Analysis | Yes | No | No |
| Display/Readout | Smartphone Interface | LED Indicators | Digital Display |
| Installation Type | Plug-in (120V Outlet) | Plug-in | Probe-based |
| Use Case | Professional diagnostics & code compliance | Basic outlet check | General electrical measurements |
| Best For | Electricians, inspectors, service pros | Homeowners & DIYers | Technicians, field engineers |
