The SPM-010 and SPM-010BC Smart Sump Pump Monitoring System from Electronic Design Service (EDS) provide reliable monitoring and control for residential and commercial sump pump systems.
These intelligent monitoring devices continuously track critical conditions including sump water level, power status, and ambient temperature. When abnormal conditions occur, the system immediately sends alerts so action can be taken before flooding or equipment damage occurs.
The SPM-010 uses Bluetooth communication with a stationary smartphone or tablet for monitoring and alert notifications, while the SPM-010BC Cellular Monitor operates independently using an integrated LTE cellular connection.
Both models provide dependable operation even during power outages thanks to an internal rechargeable backup battery.
These monitoring systems help homeowners, property managers, and installers protect basements and critical equipment from water damage.
Why Sump Pump Monitoring System Is Important
A sump pump failure or high water level can quickly lead to basement flooding and costly property damage.
A dedicated sump pump monitoring system provides early warning when:
• water level rises above the normal threshold
• electrical power to the pump is lost
• temperature conditions risk freezing or system malfunction
• the sump pump stops operating correctly
By detecting these conditions early, the SPM-010 monitoring system helps prevent major water damage events.

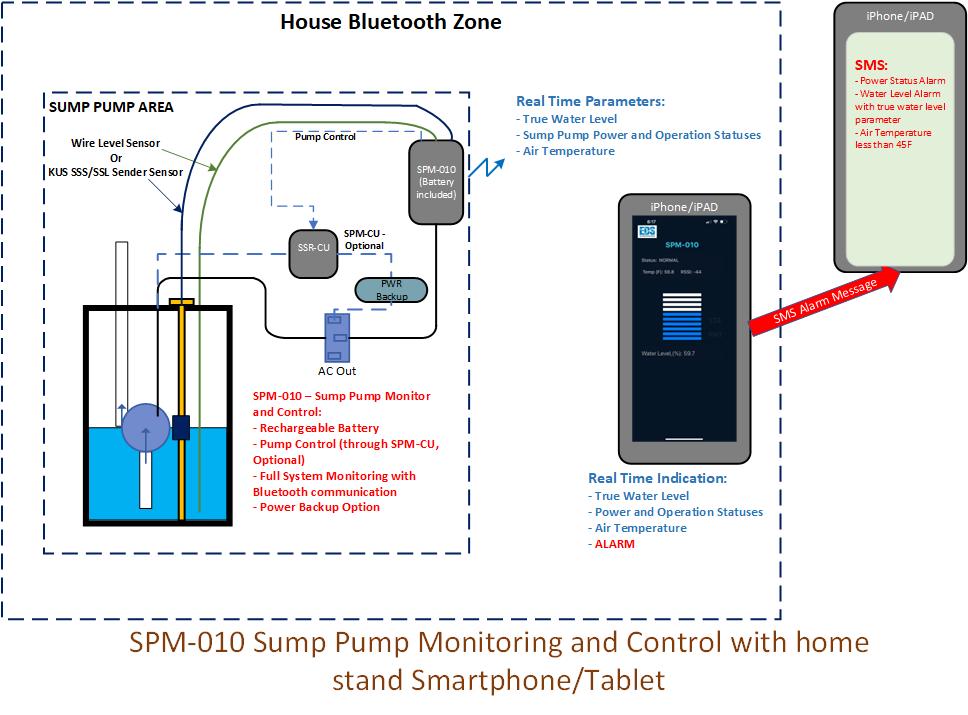

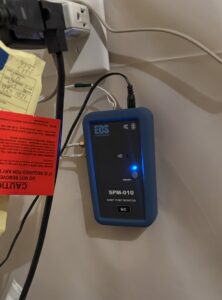

SPM-010 Bluetooth Sump Pump Monitor
The SPM-010 provides reliable monitoring using Bluetooth Low Energy communication with a smartphone or tablet.
This configuration is ideal for most homes where a stationary mobile device can remain connected to the system.
Key Features
• Bluetooth Low Energy monitoring
• High-water alarm with adjustable threshold
• Power loss detection
• Ambient temperature monitoring
• Internal rechargeable battery backup
• SMS alarm notifications through connected mobile device
• Optional sump pump control using the SSR-CU module
Typical Applications
The SPM-010 monitoring system is suitable for a wide range of installations including:
• residential basement sump pump monitoring
• vacation homes and remote properties
• commercial building sump pump protection
• equipment room water level monitoring
• flood prevention systems

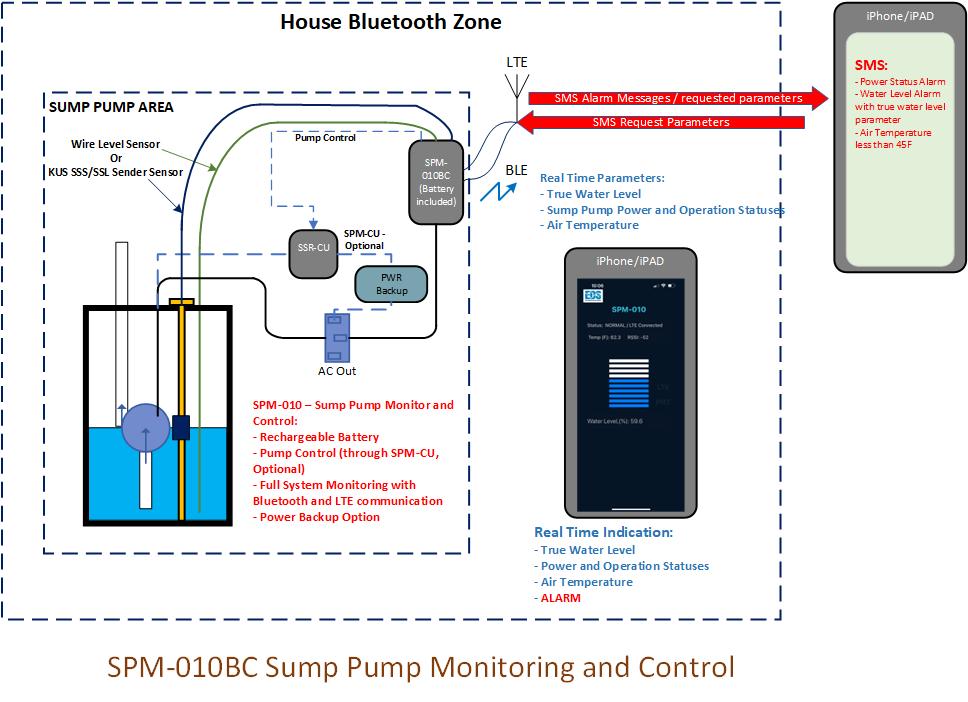

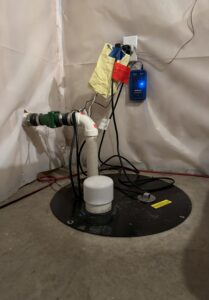

SPM-010BC Cellular Sump Pump Monitor
The SPM-010BC is a fully autonomous monitoring solution designed for remote locations or unattended installations.
With built-in LTE cellular connectivity, the device does not require Wi-Fi, internet access, or a stationary smartphone.
Key Features
• Integrated LTE cellular connectivity
• Direct SMS alarm alerts
• SMS status response to remote requests

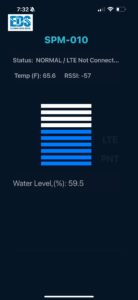

• Real-time monitoring via Bluetooth
• Internal battery backup
• Optional sump pump control using the SSR-CU module
Sensor Compatibility
The SPM-010 system supports multiple water level sensing options:
• WS-010 wire level sensor
• standard 33–240 Ohm resistive level sensors
This flexibility allows the monitoring system to integrate with many existing sump pump installations.
Reliable Engineering Design
All Electronic Design Service monitoring devices are designed using the same disciplined engineering principles used in avionics electronics development.
This approach ensures reliable operation, accurate monitoring, and long-term durability in real-world installations.
SPM-010/SPM-010BC Specifications
| Feature | SPM-010 | SPM-010BC |
|---|---|---|
| Communication | Bluetooth Low Energy (BLE) | BLE + LTE Cellular |
| SMS Alerts | Via stationary mobile device | Direct from device |
| Real-Time Monitoring | With stationary mobile device | Built-in LTE (independent) |
| Pump Control Support | Yes (with SSR-CU module) | Yes (with SSR-CU module) |
| Power Monitoring | Yes | Yes |
| Water Level Monitoring | Yes (adjustable alarm threshold) | Yes (adjustable alarm threshold) |
| Air Temperature Monitoring | Yes | Yes |
| Battery Backup | Internal rechargeable battery | Internal rechargeable battery |
| SMS On-Demand Status | No | Yes |
| Mobile App Interface | iOS (Bluetooth) | iOS (Bluetooth) |
| Sensor Compatibility | WS-010 or 33–240 Ohm resistive | WS-010 or 33–240 Ohm resistive |
Learn More or Request Information
If you would like more information about the SPM-010 monitoring system or other EDS engineering products, please visit our Contact page.
